Porsche 911 GTS Turbo Upgrade –

Porsche 911 991 tuning package 3.0l twin turbo base model to GTS turbo upgrade kit.

Turbo S Performance without the price tag.

The Porsche 991.2 is the first of the new generation of turbocharged 3.0l Turbo Porsche engines. The only difference between the base model Carrera the Carrera S and the GTS from a powertrain point of view is the turbochargers that Porsche have used coupled with matching ECU software.

The benefit of this is that all of the engine hardware components and ancillaries remain the same from the K03 base model cars up to the GTS, the only difference making the extra power and torque are the turbos.

This means its possible to upgrade from the smaller K03 turbo found on the base and Carrera S model to the bigger K04 and coupled with our Porsche 991.2 tuning the power gains are phenomenal.

To better understand what turbo is on your model see below:-

Porsche 991.2 Carrera          K03 Borgwarner (380bhp)

Porsche 991.2 Carrera S       K03s Borgwarner (420bhp)

Porsche 991.2 Carrera GTS   K04 Borgwarner (450bhp)

Example:-

If you own a 991.2 Carrera base model with 380bhp you can upgrade only the turbos and apply our Porsche 991.2 GTS tuning and the car will produce 560-570bhp a massive 200bhp.

Our Porsche 991 tuning has been developed with total reliability in mind utilising two development vehicles we own along with our fully enclosed 2000whp hub dyno to ensure the very best performance, total reliability and the ultimate driving experience.

This ECU upgrade makes carefully adjusts boost pressure, ingition timing, air fuel ratio and boost control settings to offer amazing performance without reducing engine life. We aim to protect the engine along with all other hardware components.

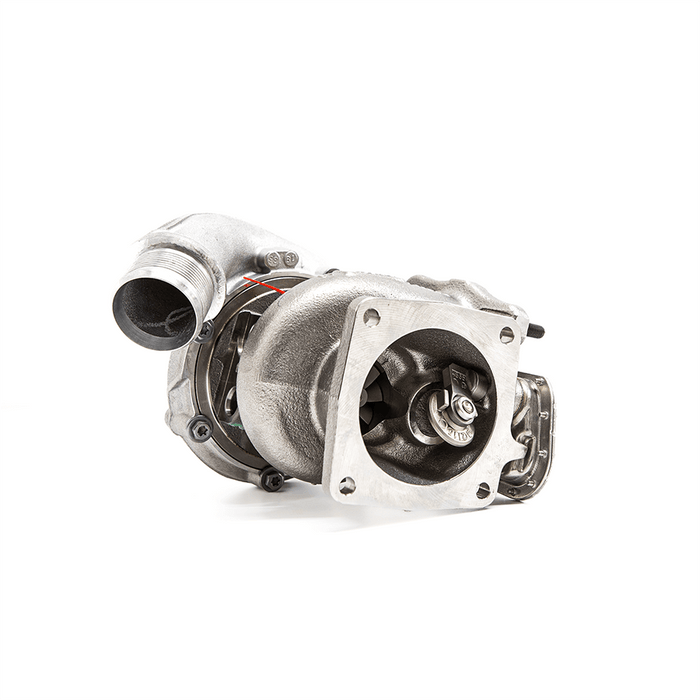

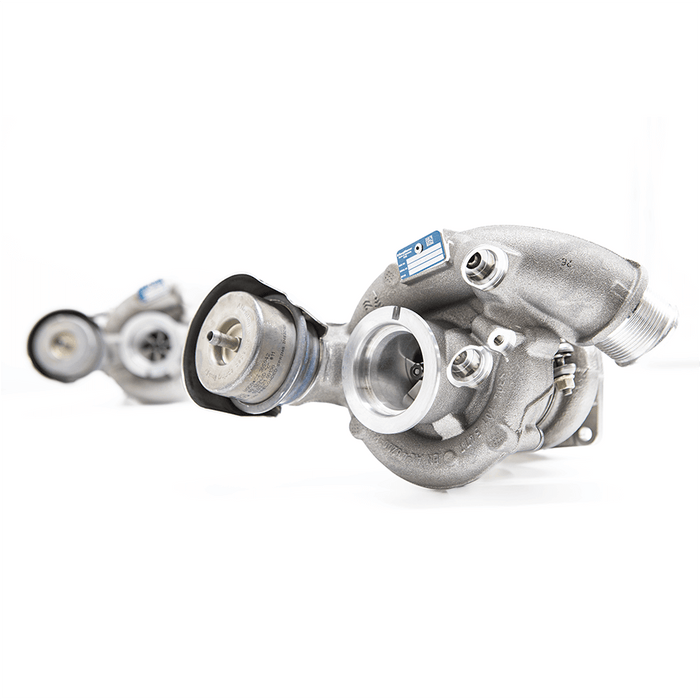

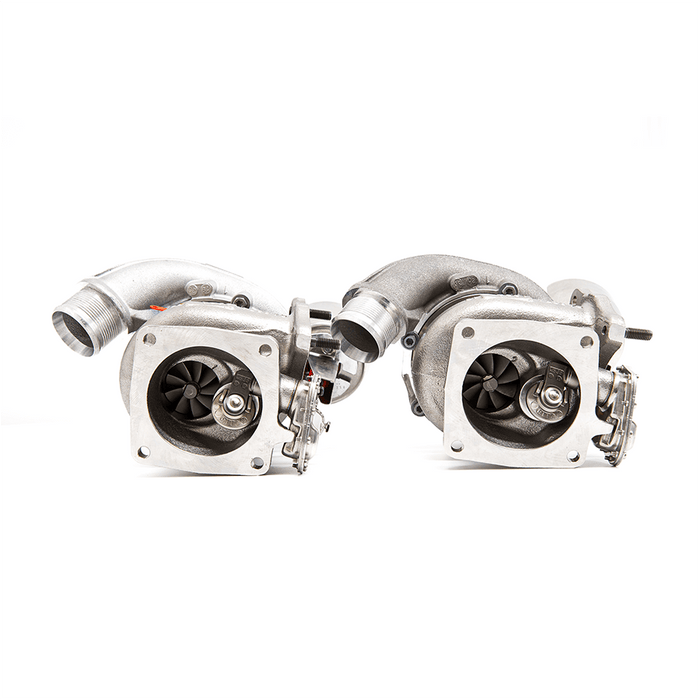

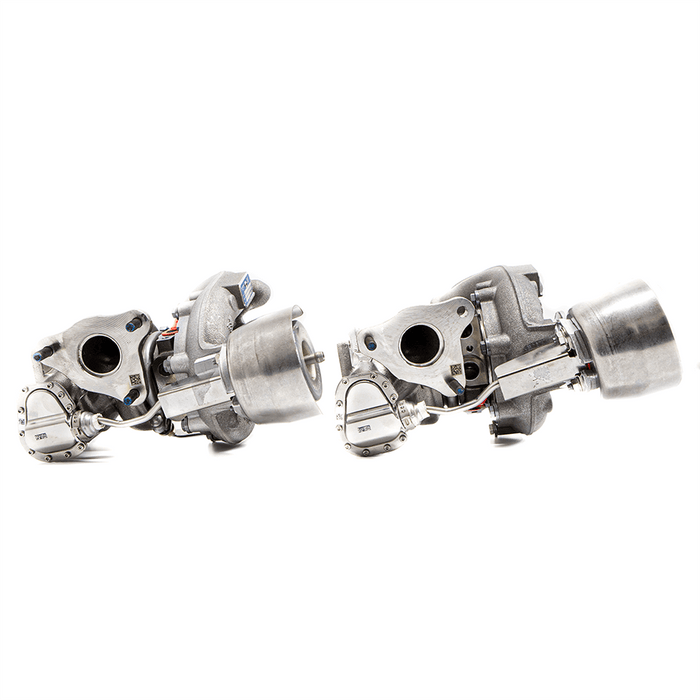

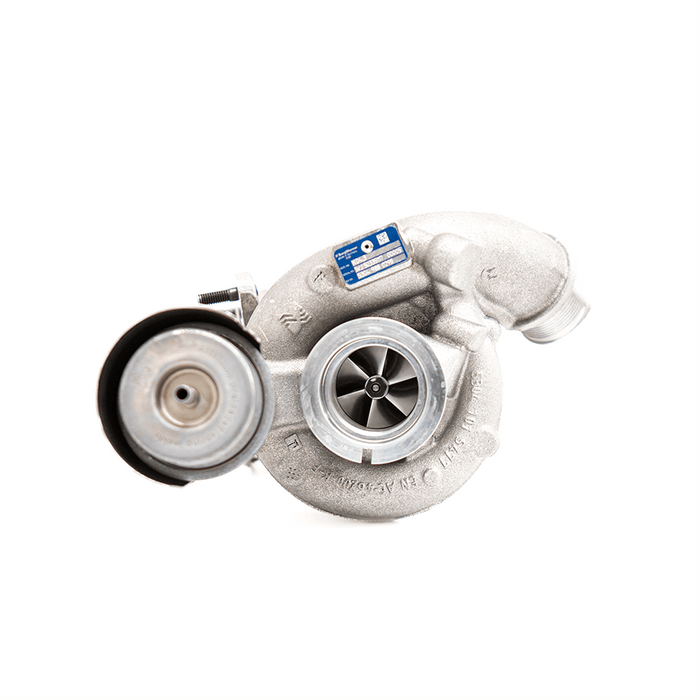

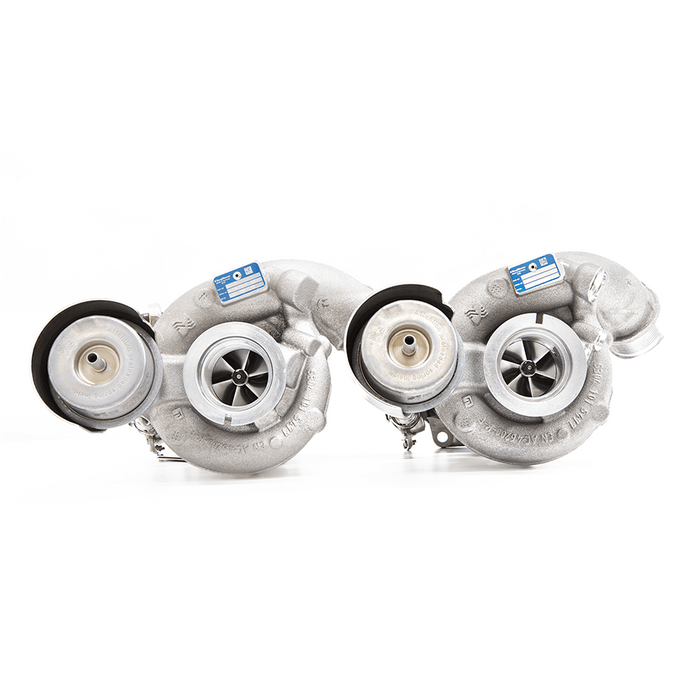

More about the K04 GTS turbo upgrade:-

The K04 Porsche GTS turbo upgrade offers a huge jump from the base Carrera model not just in greater power results but its a superior turbocharger in every way.

K04 GTS 991.2 Turbo Upgrade Key Features:-

• Larger Shaft diameter
• Bigger Compressor Wheel
• Larger Turbine wheel
• Increased water jacket diameter
• Improved bearing packs
• Larger AR housing

The K04 turbo upgrade coupled with our Porsche 991 GTS stage 3 tuning is the strongest availble upgrade for any 991.2 Porsche Carrera.

Our engineers have a deep understanding of the SDI21.2 engine managment system found in the 3.0l T Porsche 991.2 we have spent thousands of hours testing and developing to offer the best high performance remap solutions.

This substantial performance increase from only the installation of the bigger KO4 turbo chargers is made possible due to our GENOME Design Performance stage 3 ECU remap which has been developed from our own 991.2 GTS stage 1 remap.

The 991.2 stage 3 upgrade requires only the installation of the K04 turbos without the need for any further aftermarket modifications. Essentially turning your Carrera/ Carrera S into a 911 GTS with a stage 1 remap.

Additional Engine Hardware (600bhp)

• Genome Design Intercoolers
• Genome Design Sportscat Downpipes
• Genome Design Sports Exhaust manifolds
• Genome Design Turbo Elbows
• Tial Boost Pipe Kit
• Genome Design Inlet Plenum
• BMC Upgraded Air Filter

With this additional hardware we are able to flow more exhaust gas and keep charge temperatures under control. This allows us to increase ignition timing and boost pressure to achieve over 600bhp on this Porsche turbo kit.

This perfect blend of hardware has been selected and developed internally at GENOME Design on our own Porsche 911 Carrera S and our 991.2 GTS meaning we are able to run our own development program without the requirement of customer vehicles.

Performance figures:-

GENOME Engineered:-

Our Genome Design Porsche remaps are developed from the ground up using our state of the art dyno facility and leading software development and diagnostic tools. We have a deep understanding of both the engine and transmission control units on the latest generation Porsche models meaning we can deliver breathtaking performance as well as maintaining high levels of component protection. Our engineering ethos and finite attention to detail means when you buy a Genome Design tuning product for your Porsche car it is more than a transaction but an investment.

Porsche tuning has been in our DNA for decades. We have worked with turbocharged Porsches since the first generation in the 1960’s we worked closely with race teams and turbocharger manufacturers to ensure that our cars were always winning.
